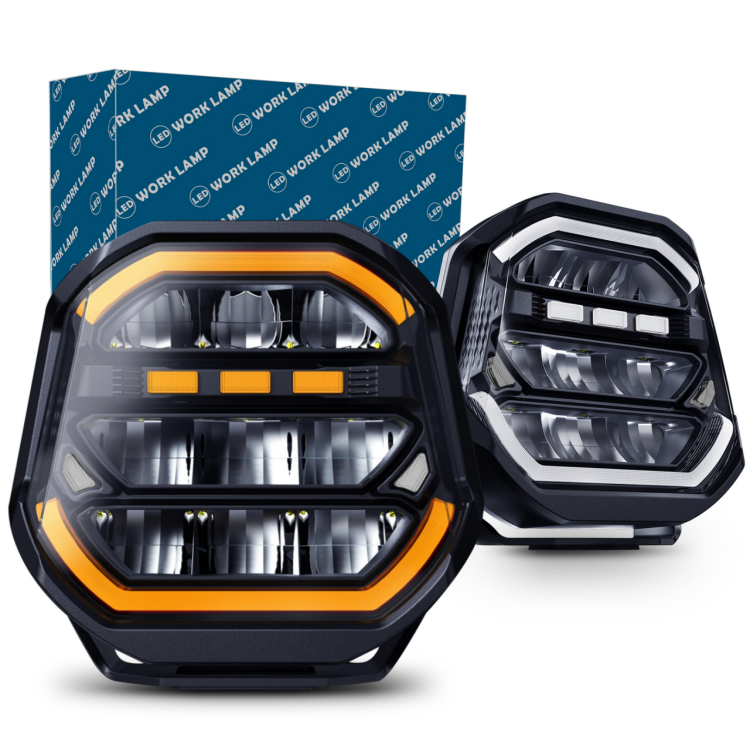

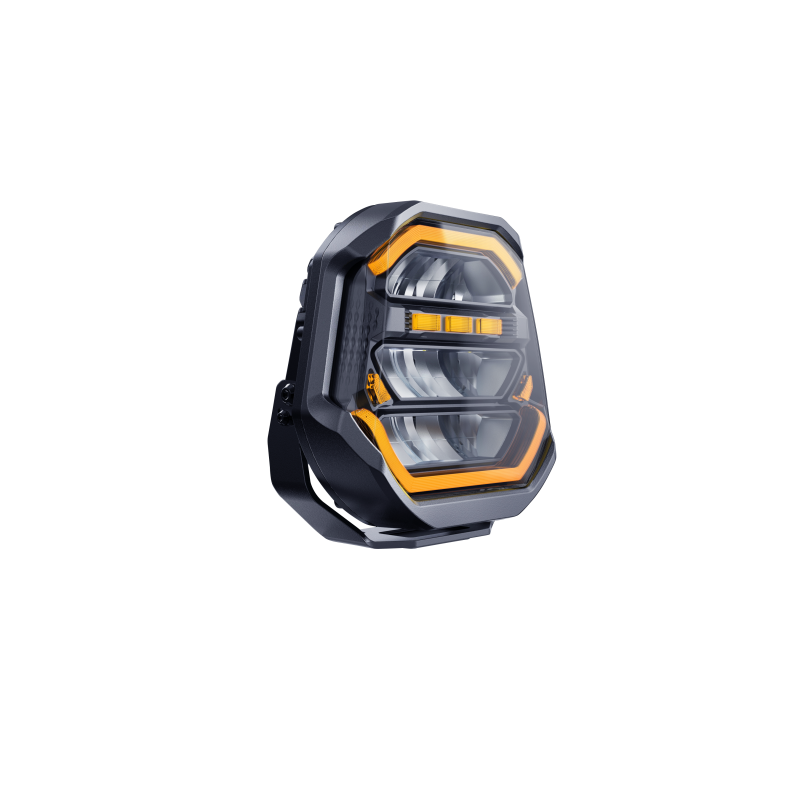

PL-B10 EVO Dynamic 9″ LED Driving Light

Features For B10 EVO Series LED Driving Lights

1. Patented products and full new conception and innovative design on market.
2. High power output with a super brightness and perfect beam pattern.
3. Multiple functions with dynamic position lights and strobe lights.

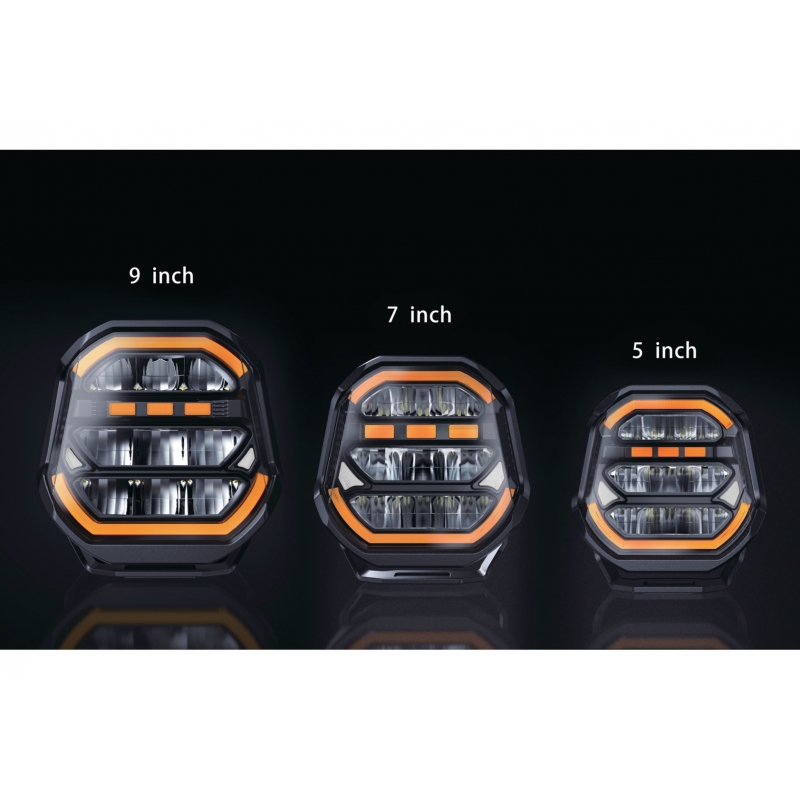

4. Special design with E-mode and Boost Mode on 7″and 9″driving lights.
5. Fully Emarked approved with R10 R65 R148 R149.
6. Three different covers for lights(yellow,black and DRL model).
7. IP68 Water-proof up to 3 meters (10 feet)
8. 5 Years warranty

Product Details

Product Specification
Theoretical Power:                     270W
Actual power:                             180W(15A@12V) E-Mode: 90W
Brightness:                                 9600Lm,Boost 21600Lm

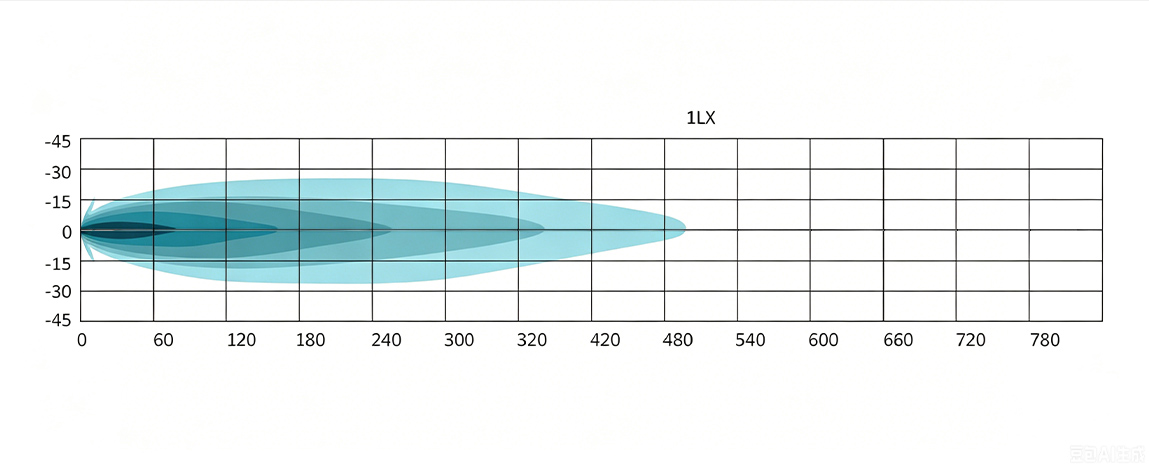

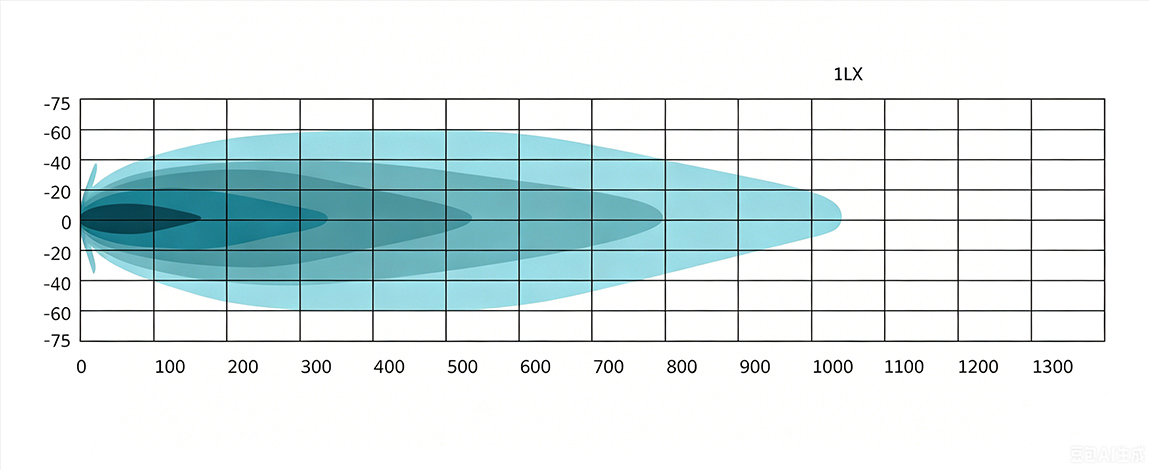

1LUX@:   E-mode:460Meters, Boost:1030Meters

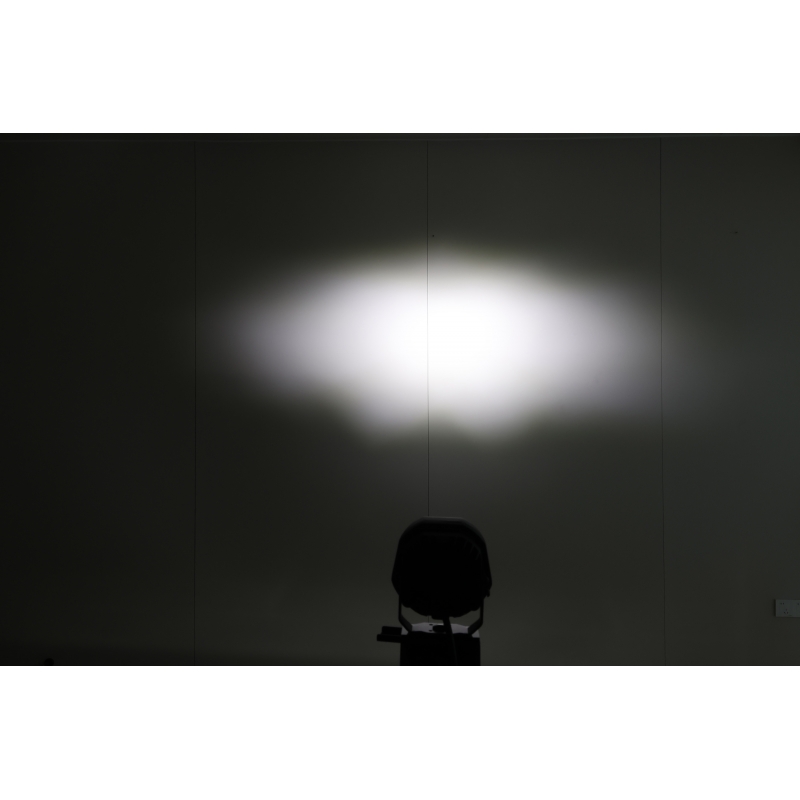

Beam Pattern: Driving beam

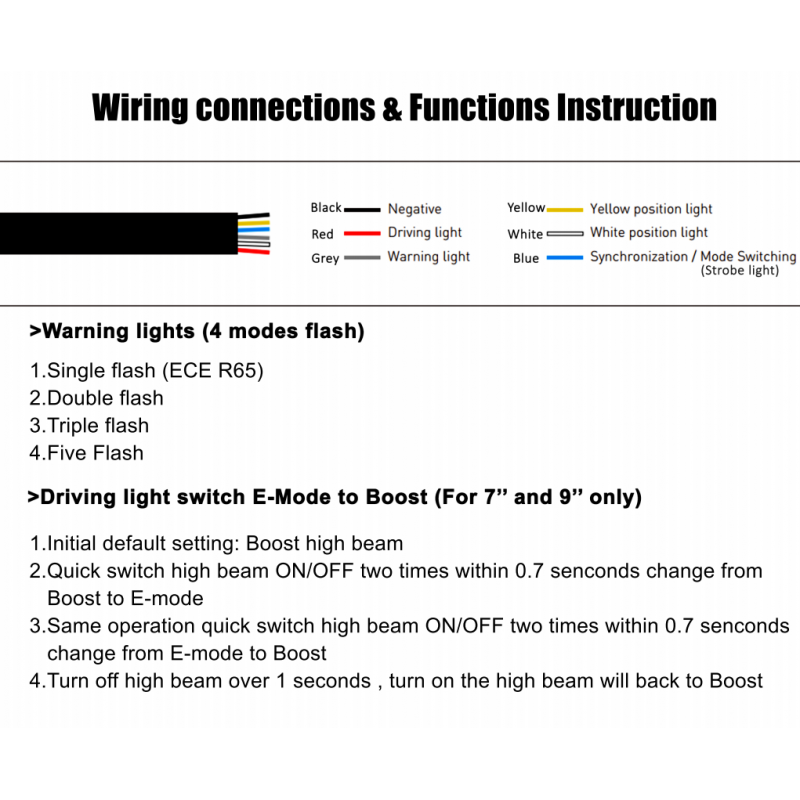

Function:                                    1.Driving beam(E-mode and off road) ,
                                                   2.Dynamic White and Amber Position
                                                   3.Strobe Light(4 modes)
Chips:                                         9X3570 30W(Main light)
Color temperature：                  6000K-6500K
Working voltage:                        9-32V
Approval:                                    ECE R10, R148, R149 ,R65
Socket:                                        6 holes DT
Water-Proof：                            IP68/IP69K

Main Materials:
·Die cast aluminum alloy (ADC12) heat-sink
·PC lens
·PVC cable
·Anodized polyester powder-coating
·DT Connector

Protected Against:
·Reverse polarity Protected
·Shock proof,waterproof and UV shielded
·RFI/EMC interference
·Voltage and current surge Protected
·Overheated Protected,Thermal management regulation
