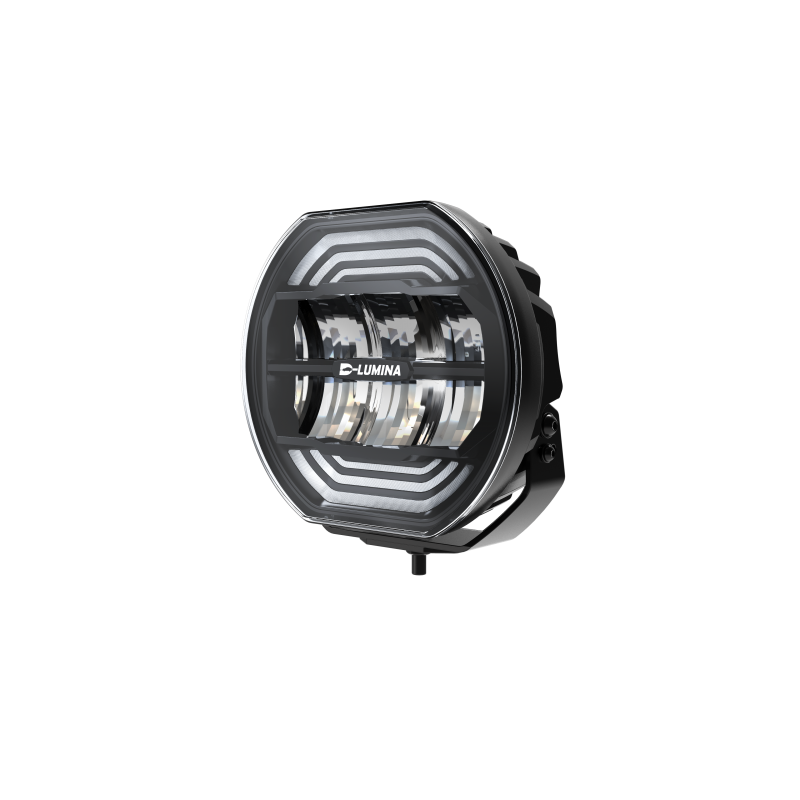

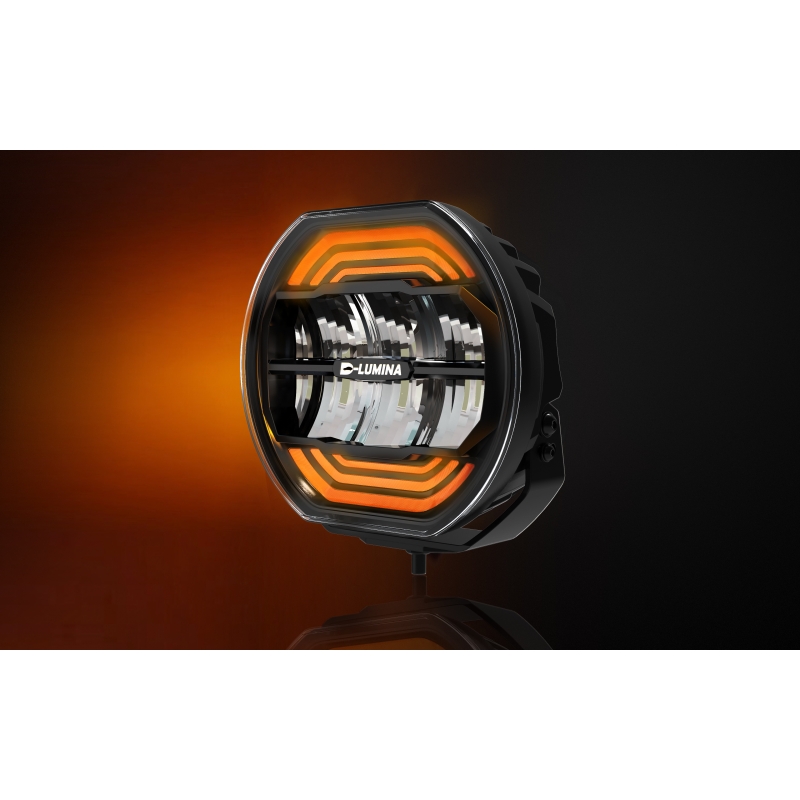

PL-B9 Premium 9″ 160W LED Work light

Features For B9 Series LED Driving Lights

1. Patented products and full new conception and innovative design on market.
2. High power output with a super brightness and perfect beam pattern.
3. Multiple functions with position lights

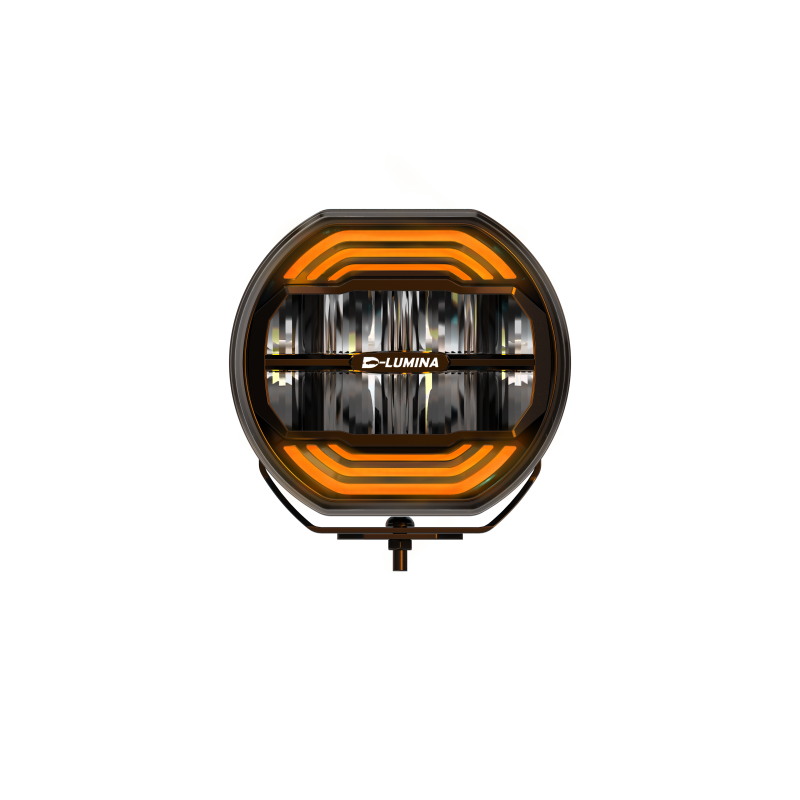

4. The tunnel style three lines amber and white position light
5. Fully Emarked approved with R10 R148 R149.
6. IP68 Water-proof up to 3 meters (10 feet)
7. 5 Years warranty

Product Details

Product Specification
Theoretical Power: 160W +10W Position
Actual power: 100W（±5%）
Beam: Driving + Poistion（White+Amber )
Working voltage： 9-32Volt DC
LED Chips:   20W*9PCS/ 12000Lumen

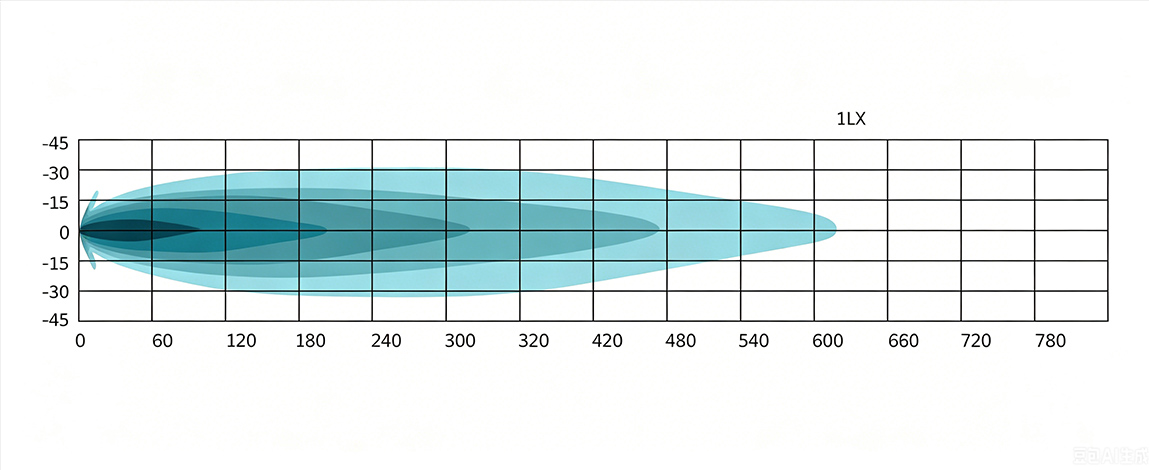

1 LUX@: 630Meters
Approval:                                    ECE R10, R148, R149
Color temperature：                  6000K/
Water-Proof：                            IP68/IP69K/Bare wire with DT
Warranty:    5 Years /White box package

Main Materials:

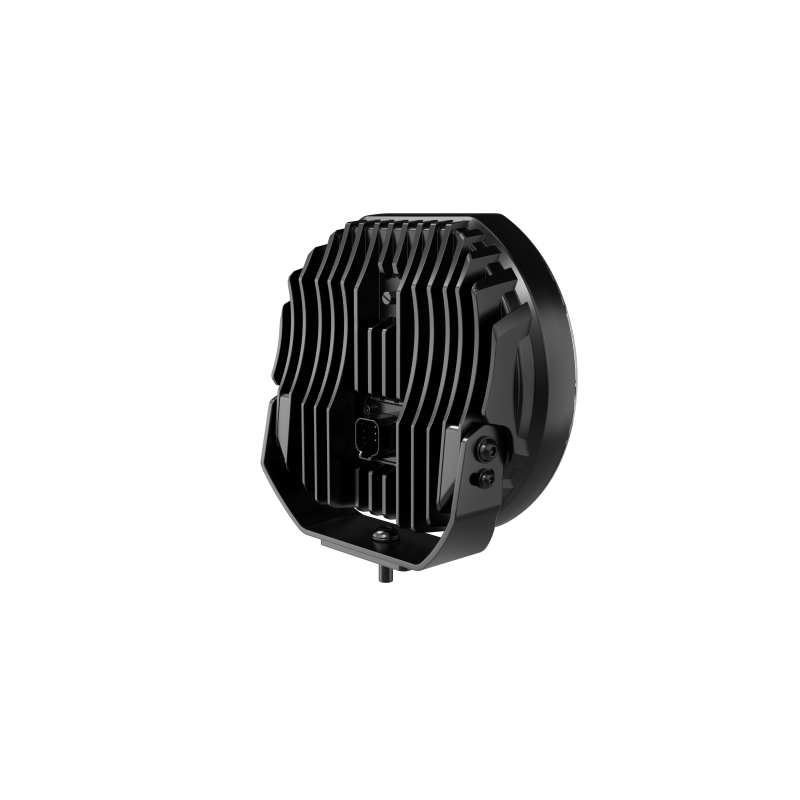

·Die cast aluminum alloy (ADC12) heat-sink
·PC lens
·PVC cable
·Anodized polyester powder-coating

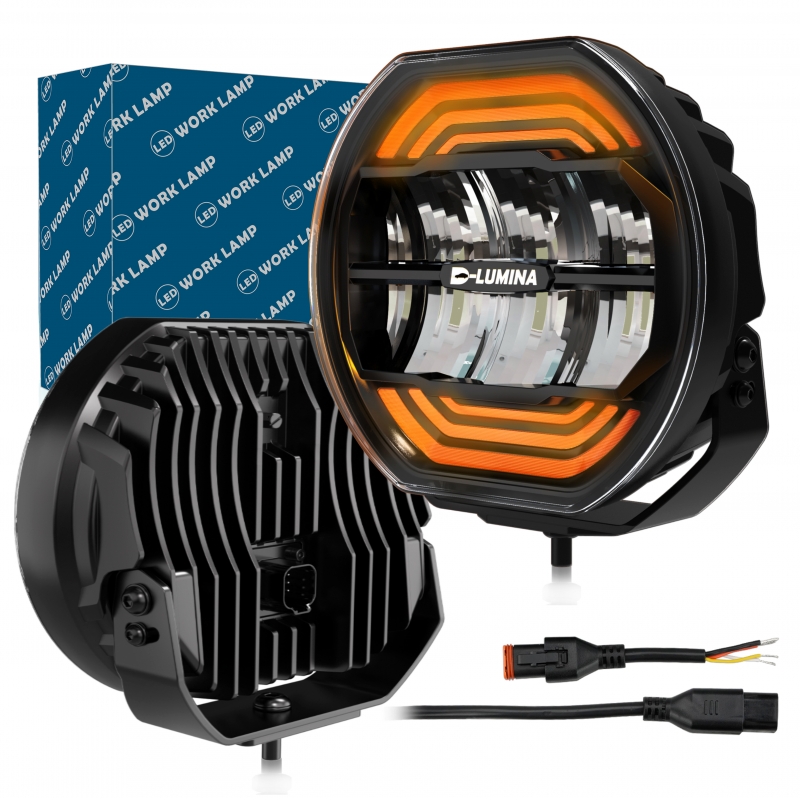

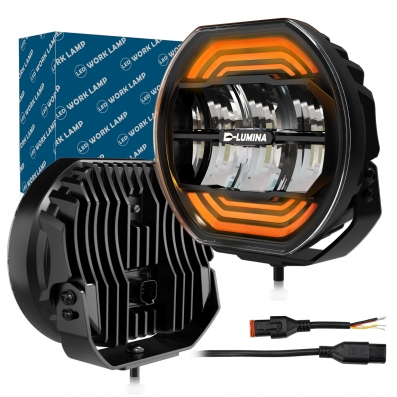

·DT Connector

Protected Against:
·Reverse polarity Protected
·Shock proof,waterproof and UV shielded
·RFI/EMC interference
·Voltage and current surge Protected
·Overheated Protected,Thermal management regulation

600-2 拷贝.jpg
